CO2 ENGINEERING AND SCIENCE AT SCALE

The LSU CO2 Research Well

INNOVATIVE CO2 RESEARCH, TRAINING, AND TESTING

The LSU Petroleum Engineering Research, Training & Testing (PERTT) Lab’s first-of-its-kind CO2 research well will allow LSU faculty, graduate students, and industry partners to model and study CO2 behavior under industrial conditions—furthering our understanding of CO2 technologies in complex energy systems, supporting the needs of the petrochemical and manufacturing industries, advancing research that supports Louisiana’s energy leadership, and equipping Tigers to lead the future of energy and industry.

LEARN ABOUT THE PERTT LAB

FROM THE LAB, FOR THE WORLD

The PERTT Lab is building on its mission of leading the next generation of energy and industrial technology to solve complex, real-world challenges.

The CO2 research well will drive critical research validating existing modeling, testing common behavior associated with industrial-scale operations, and supporting the development of new approaches and technologies for CO2 applications in industrial environments. It’s designed for experimentation in priority areas such as operational safety, transitions between phases, well integrity, sensing and monitoring, technology and tools, well control, and the impacts of operational conditions like heat, impurities, and pressure on CO2 behavior.

6,800+

Feet of Vertical Well Depth

25+

Industry Partners Collaborating to Advance CO2 Research and Innovation

40+

Year Legacy of PERTT Energy Research Leadership

RESEARCH PRIORITIES

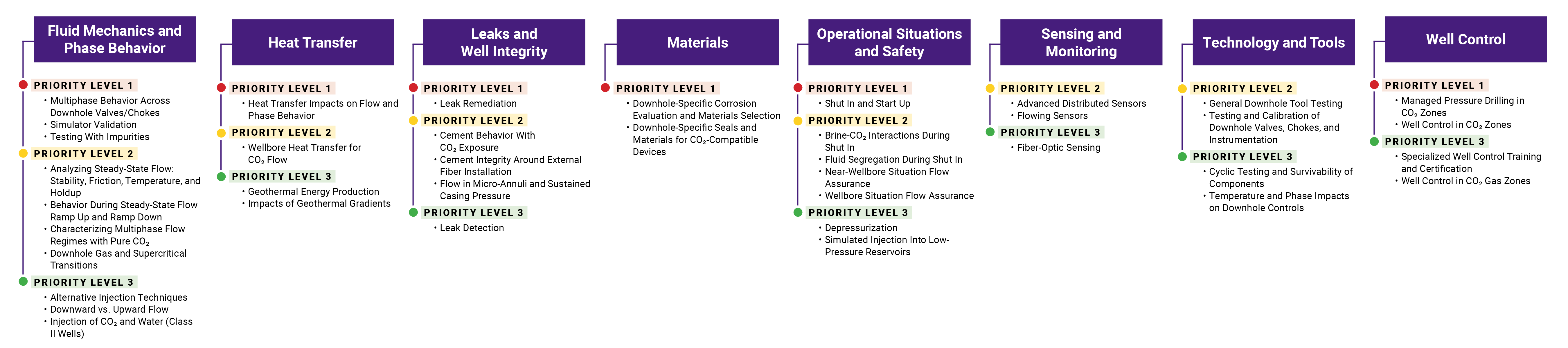

Graphic showing eight technical focus areas with research topics organized by Priority Levels 1, 2, and 3. Fluid Mechanics and Phase Behavior Priority Level 1 Multiphase Behavior Across Downhole Valves/Chokes Simulator Validation Testing With Impurities Priority Level 2 Analyzing Steady-State Flow: Stability, Friction, Temperature, and Holdup Behavior During Steady-State Flow Ramp Up and Ramp Down Characterizing Multiphase Flow Regimes with Pure CO₂ Downhole Gas and Supercritical Transitions Priority Level 3 Alternative Injection Techniques Downward vs. Upward Flow Injection of CO₂ and Water (Class II Wells) Heat Transfer Priority Level 1 Heat Transfer Impacts on Flow and Phase Behavior Priority Level 2 Wellbore Heat Transfer for CO₂ Flow Priority Level 3 Geothermal Energy Production Impacts of Geothermal Gradients Leaks and Well Integrity Priority Level 1 Leak Remediation Priority Level 2 Cement Behavior With CO₂ Exposure Cement Integrity Around External Fiber Installation Flow in Micro-Annuli and Sustained Casing Pressure Priority Level 3 Leak Detection Materials Priority Level 1 Downhole-Specific Corrosion Evaluation and Materials Selection Downhole-Specific Seals and Materials for CO₂-Compatible Devices Operational Situations and Safety Priority Level 1 Shut In and Start Up Priority Level 2 Brine-CO₂ Interactions During Shut In Fluid Segregation During Shut In Near-Wellbore Situation Flow Assurance Wellbore Situation Flow Assurance Priority Level 3 Depressurization Simulated Injection Into Low-Pressure Reservoirs Sensing and Monitoring Priority Level 2 Advanced Distributed Sensors Flowing Sensors Priority Level 3 Fiber-Optic Sensing Technology and Tools Priority Level 2 General Downhole Tool Testing Testing and Calibration of Downhole Valves, Chokes, and Instrumentation Priority Level 3 Cyclic Testing and Survivability of Components Temperature and Phase Impacts on Downhole Controls Well Control Priority Level 1 Managed Pressure Drilling in CO₂ Zones Well Control in CO₂ Zones Priority Level 3 Specialized Well Control Training and Certification Well Control in CO₂ Gas Zones.





Hands-On Training for Tigers

In addition to its research value, the well will give Tigers hands-on training for their engineering careers by equipping them with industry-relevant skills.

Technical Information About the Well

Diagram titled “LSU CO2 Research Well – Drilling Schematic.” The graphic shows a vertical cross-sectional schematic of a CO₂ research well with hole sections, casing strings, depths, and drilling specifications. Left side labels: 26-inch Hole Section 9.5 ppg WBM Approximate base of USDW (Underground Source of Drinking Water) at ~3,100 ft 17-1/2-inch Hole Section 9.5–10.0 ppg WBM 12-1/4-inch Hole Section 12.5–12.8 ppg OBM 6909 ft KOP 6 degrees per 100 ft DLS limit Additional note: 90 ft core depth approximately 6,200 ft Right side labels: 30-inch Conductor Preset to vendor maximum (~150 ft) Cement to surface 20-inch Surface Casing 0–3200 ft MD 133 ppf J55 BTC TOLC 0 ft MD, TOTC 2700 ft MD 12.0 ppg lead, 15.0 ppg tail 13-3/8-inch Intermediate Casing 0–2000 ft MD, 72 ppf L80 VAM Top 2000–4500 ft MD, 72 ppf C110 Wedge 523 TOLC 0 ft MD, TOTC 4500 ft MD 12.0 ppg lead, 15.0 ppg tail External Fiber 9-5/8-inch Liner 4250–9505 ft MD 47 ppf P110-IC BTC Halliburton liner hanger TOC liner top 14.5 ppg cement Total depth: TD approximately 9505 ft MD / 7864 ft TVD The schematic depicts nested casing strings extending progressively deeper into the wellbore, with a highlighted external fiber installation on the intermediate casing and a highlighted core interval near 6,200 feet depth.Designed for Safe, Effective Research and Innovation

The research well is designed for testing and experimentation and will include above-ground instrumentation and controls that support research. It will be a completed, non-perforated well—this means it will be drilled to completion, but lack the casing perforations needed to extract or inject fluids into the surrounding geology. The entirety of the well will be cased and cemented, with both 9 5/8-inch and 13 3/8-inch casing diameters installed, depending on vertical depth.

The well will have two main components—a permanent wellbore, completed with carbon steel casing to provide structural integrity and prevent interaction between wellbore fluids and the adjacent geology, and an internal completion that can be reconfigured to support a variety of research needs. Each internal completion will sit inside the permanent well and will generally consist of valves, chokes, instrumentation, and fiber-optic sensors, with each specific design supporting different research needs.

The well will extend approximately 6,800 feet below the surface at the PERTT Lab and will be designed specifically to support applied CO2 technology research and enhanced operational performance through experimentation and data collection. It is not a commercial carbon capture and storage site—nothing will be injected or stored in the ground. The attached schematic summarizes the original design. The final well construction was limited to the vertical section, with the ability to add an eight-in deviated or horizontal section in the future.

Frequently Asked Questions

Click on the accordions below to find answers to common questions.

To maintain its position as a leader within the energy sector, Louisiana must prepare for and adapt to evolving energy and industrial needs. As technologies continue to evolve, this well positions LSU and Louisiana to lead in CO₂ engineering and science research at scale—supporting the dynamic needs of the state's petrochemical and manufacturing industries and attracting industrial investment.

The resulting processes and technology can continue to improve industrial safety for new technologies for both workers and surrounding communities, enhance operational efficiency and profitability, and support continued investment across the state’s energy, industrial, and manufacturing sectors—reinforcing Louisiana’s position as a dominant leader in the global energy marketplace.

The well site is on LSU’s main campus in Baton Rouge, near the soccer fields off Gourrier Drive—providing convenient access for LSU faculty and students.

The research well is supported by funding from the U.S. Economic Development Administration (EDA), Louisiana Economic Development (LED), and state appropriations, along with funding and in-kind support from partners Halliburton, Chevron, Shell, Lemoine, and ExxonMobil.

Industry contributions reflect their commitment to furthering the research and modeling outcomes that will produce solutions to common operational problems; however, the research agenda will be set and led by LSU.

No, the well is not a carbon capture or storage site, and nothing will be injected or stored in the ground.

The well will serve as a research facility for studying CO2 behavior and impurities under realistic industrial conditions—advancing the science needed to ensure at-scale industrial operations can continue to improve safety and efficiency.

Project Partners

This project is made possible through collaborative efforts between LSU, federal and state partners, and industry contributors.

While the project is funded by the Economic Development Administration and Louisiana Economic Development (with additional direct state funding), we have been able to plan a much more ambitious project because of the generous partnerships and contributions of our corporate sponsors.

Sponsors:



EDA logo

LED logo

Louisiana State Seal



Core Partners:

Halliburton logo

Exxon-Mobil logo

Shell logo

Chevron logo

Lemoine logo



Support Partners:

CRA logo





H&P Logo



CRA logo

Pason logo



Participants:

Deep Well logo



RES logo

Noblecorp logo

Macro logo

Newpark Pats logo

Moncla logo

Zealous logo
